KDH051-306 2 Button Switch/Controller For Recliner Lift Chair

• This is a Kaidi 2-button fixed switch/controller for recliners or lift chairs.
• The model number is KDH051-306, if your original switch has the exact same model number, you can use this one to replace it.

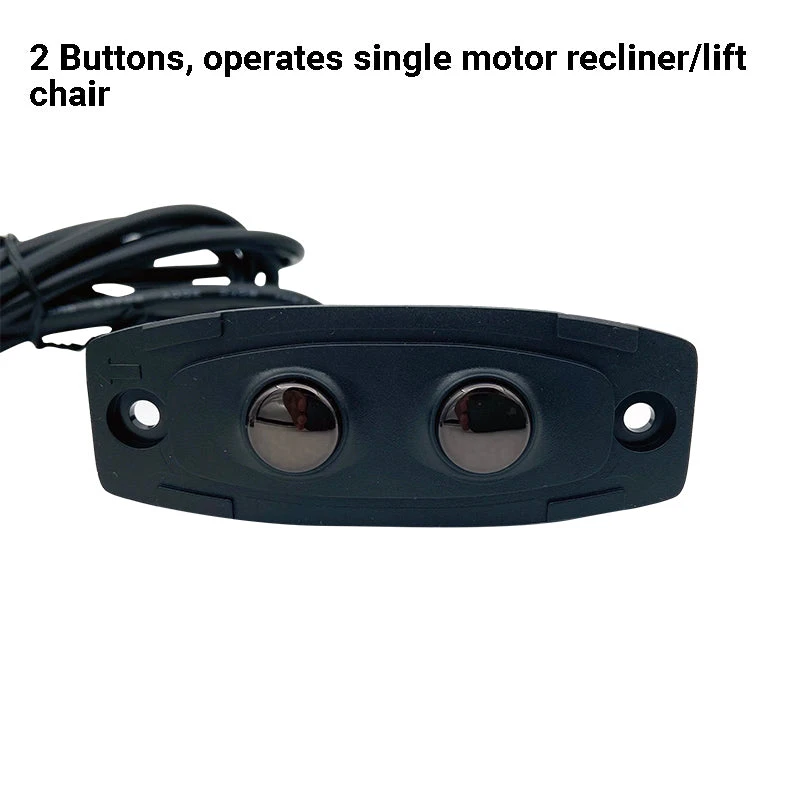

• The switch has 2 buttons and operates the up/down of the chair, the switch is suitable for  single linear actuator recliners/lift chairs.

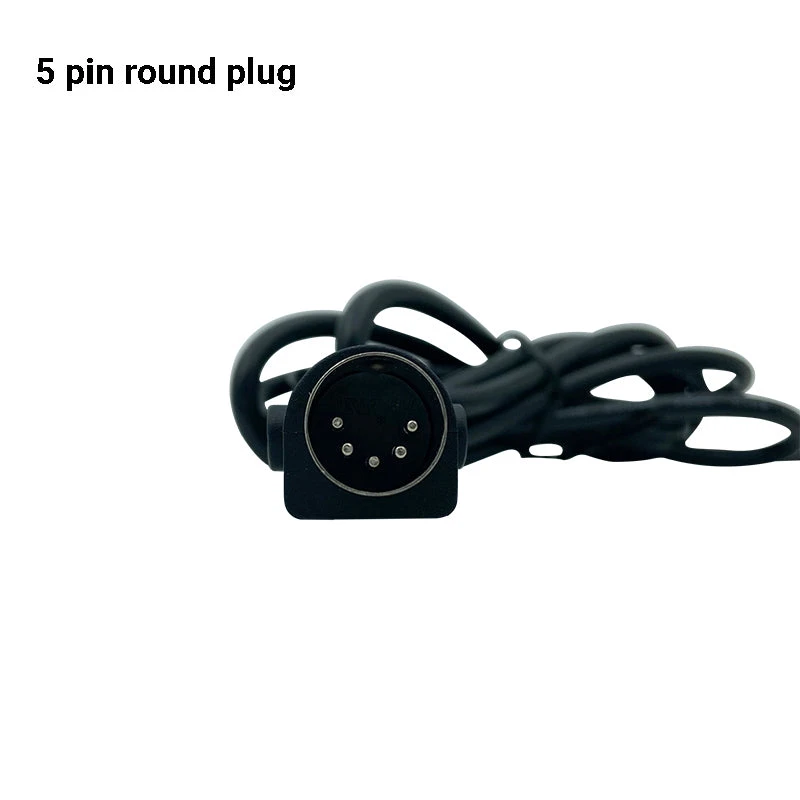

• The plug of the switch is a round 5-pin male plug.

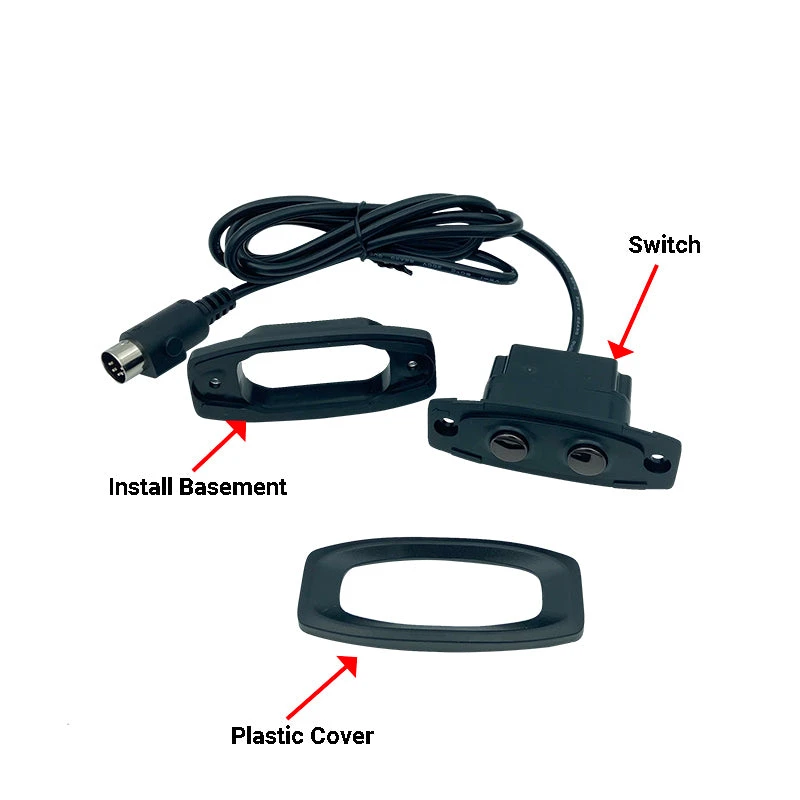

Package includes:

• 1* switch
• 1*install base
• 1* plastic cover

Note:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
